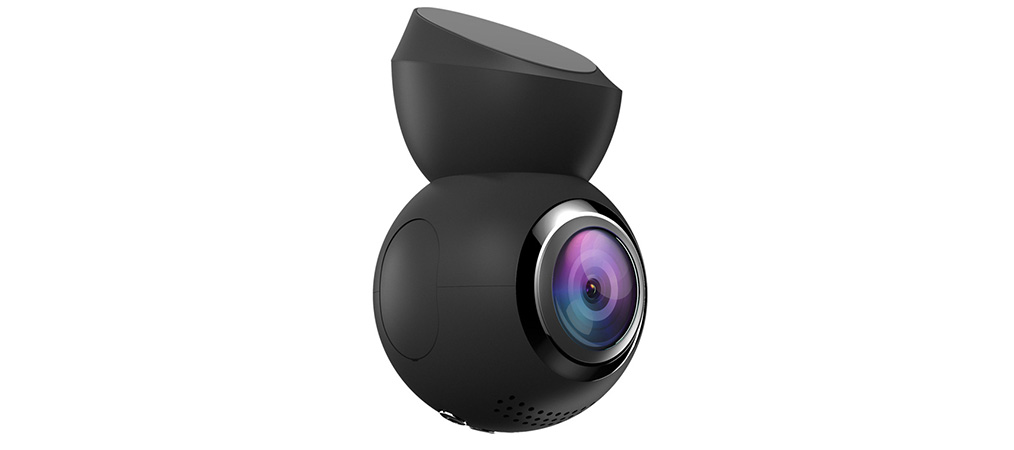

NAVITEL R10

Unique design

One look at it and you know – this tiny and powerful Full HD Dash Cam is like no other, with a wide 165° viewing angle, built-in GPS and magnetic mount.

High quality optics

The lens of NAVITEL R10 Dash Cam is composed of 6-layer glass to ensure high quality video recording. The Dash Cam records Full HD footage with enhanced clarity at 30 fps frame rate. With a wide viewing angle of 165°, impressive in such a compact device, NAVITEL R10 provides an optimal view and allows to take in a more detailed picture.

Magnetic mount

NAVITEL R10 consists of a 3M adhesive mount that attaches firmly to the windscreen of your car and a camera connected to the mount with a magnetic bracket. This allows for easy 360° rotation of the camera. With NAVITEL R10, you can record critical footage of events happening in front of you or inside of your car, capture passenger's seat as well as driver's side door.

Safe file storage

The built-in G-sensor is activated in case of collision or an abrupt maneuver. The camera then saves the footage recorded during the accident and protects it for future reference making sure it is not written over.

Mobile app

Navitel DVR Center allows to connect the dash cam to your smartphone, instantly share videos taken by NAVITEL R10 and watch them on the screen of your mobile device in real-time. DVR settings can be easily adjusted directly from your mobile phone through the app interface.

Contents

NAVITEL R10 Dash Cam
Windscreen holder
Car charger
miniUSB cable
Microfiber cloth
User manual
Warranty card

NAVITEL R10:

Camera
Camera sensor
GC2023
Video resolution max
Full HD 1920х1080
FPS
30
Viewing angle
165°
Lens material
6-layer glass
Video format
MOV (H.264)
Image format
JPG
Video fragments length
1/3/5 min
Loop recording
yes
Overwrite protection
yes
Rear camera
Rear camera connectivity
no
Display
Screen size
1.22"
Screen type
TN
Screen resolution
240x204
Touch screen
no
Features
Auto-Start
yes
Digital speedometer
yes
G-sensor
yes
Motion detection
yes
Parking mode
yes
Sound recording
yes
Wi-Fi support
yes
GPS antenna
yes
Mass Storage
yes
Manage via Navitel DVR Center
yes
Wi-Fi
Wi-Fi Operating frequency
2.4GHz band
Wi-Fi Output Power 802.11b /11Mbps
10db
Wi-Fi Output Power 802.11g /54Mbps
27db
Wi-Fi Output Power 802.11n /MCS7
30db
Wi-Fi Output Power 802.11n HT40
30db
Power
Power supply (12-24V 1.5A)
5V 1-1.5A
Battery
Li-Pol
Battery capacity
180 mAh 3.7 V
General
CPU
MStar MSC8328
Interfaces
mini USB
microSD slot
up to 64 GB
Number of cameras
1
Mount
3M adhesive, magnet, power supplied directly to holder
Speaker
yes
Microphone
yes
Color
black
Dimensions
48х48х87 mm
Weight
98 g
EAN
8594181742528
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
